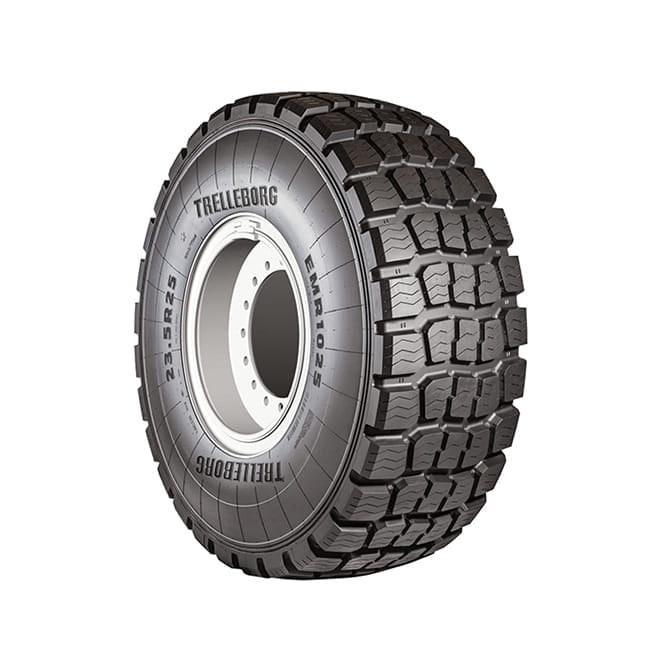

All-Season Tire 1025
Trelleborg’s EMR1025 All-Season tire adds extra comfort and safety.
With its siped winter tread pattern and state-of-the-art compound, EMR1025 delivers higher grip and traction on snow and reduced braking distance, so operators and machines get the best possible protection and as a commercial All-Season tire seasonal change-outs are no longer necessary.
EMR1025 offers both the comfort and robustness of the EMR range and the grip of a commercial winter tire.
Localizar Um Revendedor
The Performance you need
Designed for Loaders and Dumpers applications, the EMR tires are suitable for open pits and quarries, underground mines as well as general construction applications.
Downloads
De instruções e aconselhamento a dicas e detalhes sobre os tamanhos, esses PDF abrangem toda a informação de que você necessita sobre a Série EMR.
EMR1025
High grip total control
Série EMR
O desempenho que você precisa
Dados técnicos
Loader/Transport Service
Tire size |
Tread pattern Type |
Rim (permitted) |
Overall Diameter (mm) | Section Width (mm) | Loaded static radius (mm) |
Rolling circumference (mm) |
Tread depth (mm) |
Service description LI/SS |
Tire load capacity (kg) at 10 (km/h) | Tire pressure (bar) |
Tire load capacity (kg) at 50 (km/h) | Tire pressure (bar) |
| 17.5 R 25 | EMR1020 TL |
14.00/1.5-25 (14.00/1.5x25 DC, 14.00/1.3x25 DC) |
1.349 | 434 | 588 | 4.100 | 28 | * 176 A2/157 B |
7.100 |
4,50 |
4.125 |
3,50 |
| EMR1030 TL |
14.00/1.5-25 (14.00/1.5x25 DC, 14.00/1.3x25 DC) |
1.347 | 442 | 610 | 4.068 | 28 | * 176 A2/157 B |
7.100 |
4,50 |
|||
| 4.125 | 3,50 | |||||||||||
| 20.5 R 25 | EMR1020 TL |
17.00/2.0-25 (17.00/1.7-25) |
1.389 | 540 | 643 | 4.527 | 31 | ** 193 A2/177 B |
11.500 |
5,75 |
||
| 7.300 | 4,50 | |||||||||||
| EMR1030 TL |
17.00/2.0-25 (17.00/1.7-25) |
1.490 | 536 | 647 | 4.514 | 36 | ** 193 A2/177 B |
11.500 |
5,75 |
|||
| 7.300 | 4,50 | |||||||||||
| EMR1030V TL |
17.00/2.0-25 (17.00/1.7-25) |
1.494 | 523 | 644 | 4.511 | 36 | ** 193 A2 |
11.500 |
5,75 |
|||
| EMR1050 TL |
17.00/2.0-25 (17.00/1.7-25) |
1.542 | 525 | 685 | 4.732 | 85 | ** 193 A2 |
11.500 |
5,75 |
|||
| 23.5 R 25 | EMR1020 TL |
19.50/2.5-25 | 1.613 | 614 | 691 | 4.879 | 34 | ** 201 A2/185 B |
14.500 |
5,75 |
||
| 9.250 | 4,50 | |||||||||||
| EMR1030 TL |
19.50/2.5-25 | 1.613 | 614 | 694 | 4.888 | 38 | ** 201 A2/185 B |
5,75 |
||||
| 14.500 | 9.250 | 4,50 | ||||||||||
| EMR1040 TL |
19.50/2.5-25 | 1.670 | 616 | 729 | 5.023 | 60 | ** 201 A2/185 B |
14.500 |
5,75 |
|||
| 9.250 | 4,50 | |||||||||||
| EMR1050 TL |
19.50/2.5-25 | 1.668 | 609 | 737 | 5.109 | 90 | ** 201 A2 |
14.500 |
5,75 |
|||
| 26.5 R 25 | EMR1030 TL |
22.00/3.0-25 | 1.747 | 676 | 749 | 5.300 | 41 | ** 209 A2/193 B |
18.500 |
5,75 |
||
| 11.500 | 4,50 | |||||||||||
| EMR1040 TL |
22.00/3.0-25 | 1.794 | 684 | 744 | 5.387 | 60 | ** 209 A2/193 B |
18.500 |
5,75 |
|||
| 11.500 | 4,50 | |||||||||||
| EMR1050 TL |
22.00/3.0-25 | 1.792 | 676 | 780 | 5.477 | 97 | ** 209 A2 |
18.500 |
5,75 |
|||
| 750/65 R 25 | EMR1030 TL |
24.00/3.0-25 | 1.609 | 724 | 685 | 4.917 | 44 | ** 209 A2/190 B |
18.500 |
6,25 |
||
| 10.600 | 4,25 | |||||||||||
| 29.5 R 25 | EMR1030 TL |
25.00/3.5-25 | 1.872 | 764 | 794 | 5.628 | 43 | ** 216 A2/200 B |
22.400 |
5,75 |
||
| 14.000 | 4,50 | |||||||||||
| EMR1040 TL |
25.00/3.5-25 | 1.919 | 765 | 824 | 5.787 | 65 | ** 216 A2/200 B |
22.400 |
5,75 |
|||
| 14.000 | 4,50 | |||||||||||
| EMR1042 TL |
25.00/3.5-25 | 1.870 | 740 | 806 | 5.626 | 60 | ** 200 B/216 A2 |
22.400 |
5,75 |
|||
| 14.000 | 4,50 | |||||||||||
| EMR1050 TL |
25.00/3.5-25 | 1.916 | 742 | 832 | 5.799 | 110 | ** 216 A2 |
22.400 |
5,75 |
|||
| 18.00 R 33 | EMR1045 TL |
13.00/2.5-33 | 1.873 | 491 | 858 | 5.613 | 54 | ** 191 B |
||||
| 10.900 | 6,50 |
*/** - Index of tire strength
Grader/Transport Service
| Tire size |
Tread pattern Type |
Rim (permitted) |
Overall Diameter (mm) | Section Width (mm) | Loaded static radius (mm) |
Rolling circumference (mm) |
Tread depth (mm) |
Service description LI/SS |
Tire load capacity (kg) at 40 (km/h) |
Tire pressure (bar) | Tire load capacity (kg) at 10 (km/h) |
Tire pressure (bar) |
| 14.00 R 24 | EMR1020 TL |
8.00TG-24 SDC (10.00VA-24 SDC) |
1.371 | 376 | 615 | 4.107 | 24 | * 153 A8 |
3.650 |
3,75 |
||
| 14.00 R 24 | EMR1025 TL |
8.00TG-24 SDC (10.00VA-24 SDC) |
1.373 | 378 | 616 | 4.090 | 24 | * 153 A8 |
3.650 |
3,75 |
||
| 17.5 R 25 | EMR1025 TL |
14.00/1.5-25 (14.00/1.5x25 DC, 14.00/1.3x25 DC) |
1.350 | 446 | 613 | 4.009 | 28 | * 153 A8/176A2 |
3.650 |
3,00 |
7.100 |
4,50 |
*/** - Index of tire strength
