SR940
Get themost out of your tires. Designed for maximum tire life and best cost per hour.
Side circumferential rib: great handling and traction performance in wet conditionsReinforced sidewall: excellent stability during loading and unloading operations
Extra-deep tread: superior tire life and best cost per hour Znajdź Sprzedawcę
Downloads
From instructions and advice to tips and sizing details, these PDFs cover all the information you will need on the Trelleborg SR940.

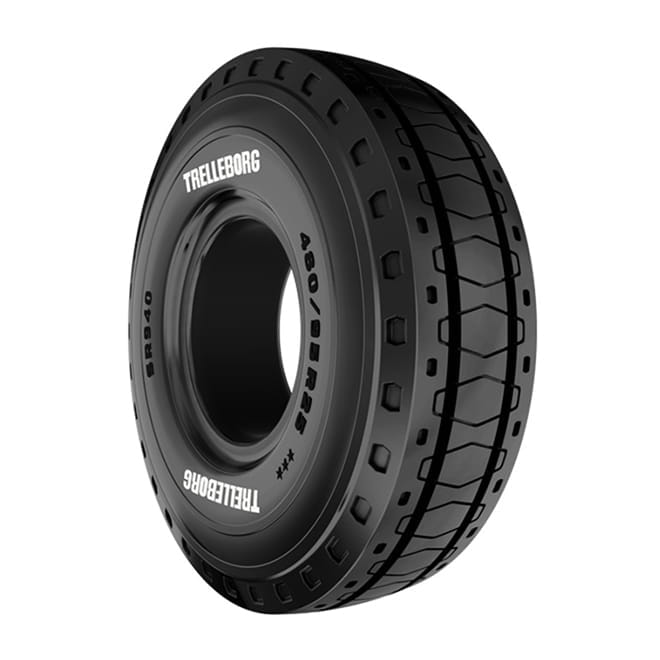

Trelleborg SR940
Designed for life
Dane techniczne
| Tire size | 480/95 R 25 |
| Service description LI/SS | 208 A5 |
| Permitted rims | 13.00/2.5-25 - 11.25/2.0-25 |
| Overall diameter - new [mm] | 1565 |
| Rolling circumference [mm] | 4872 |
| Tread depth [mm] | 51 |
| Tread pattern | SR 940 |
| Index of tire strength | *** |
| Type (tubeless/tube type) | TL |
| Section width - new [mm] | 469 |
| Loaded static radius [mm] | 683 |
| EAN code | 8059971597202 |
| Speed [km/h] | Tire load capacity [kg] | ||||
| Tire pressure [kPa] | |||||
|
800 |
850 |
900 |
950 |
1000 |
|
| 0 Static | 16,500 | 17,350 | 18,150 | 19,000 | 19,800 |
| 1 Creep | 16,500 | 17,350 | 18,150 | 19,000 | 19,800 |
| 5 | 16,500 | 17,350 | 18,150 | 19,000 | 19,800 |
| 10 | 16,500 | 17,350 | 18,150 | 19,000 | 19,800 |
| 15 | 16,500 | 17,350 | 18,150 | 19,000 | 19,800 |
| 20 | 16,500 | 17,350 | 18,150 | 19,000 | 19,800 |
| 25 | 15,000 | 15,750 | 16,500 | 17,250 | 18,000 |
| 30 | 14,450 | 15,150 | 15,900 | 16,600 | 17,350 |
| 35 | 13,900 | 14,550 | 15,250 | 15,950 | 16,650 |
